hello today we are going to make
00:00:02
a new circuit as always we need
00:00:04
a protoboard and the arduino board
00:00:07
and this circuit is going to use
00:00:11
an LED as an output
00:00:13
so we can drag the LED here
00:00:18
and we're going to connect it the
00:00:21
same way that we always have so
00:00:22
we need the ground connection over here
00:00:24
to the horizontal line
00:00:26
and the wire will be black
00:00:29
and now we will connect the ground
00:00:34
to this terminal from the cathode and
00:00:36
this wire is going to also be
00:00:39
black
00:00:40
and of course we need a protection
00:00:47

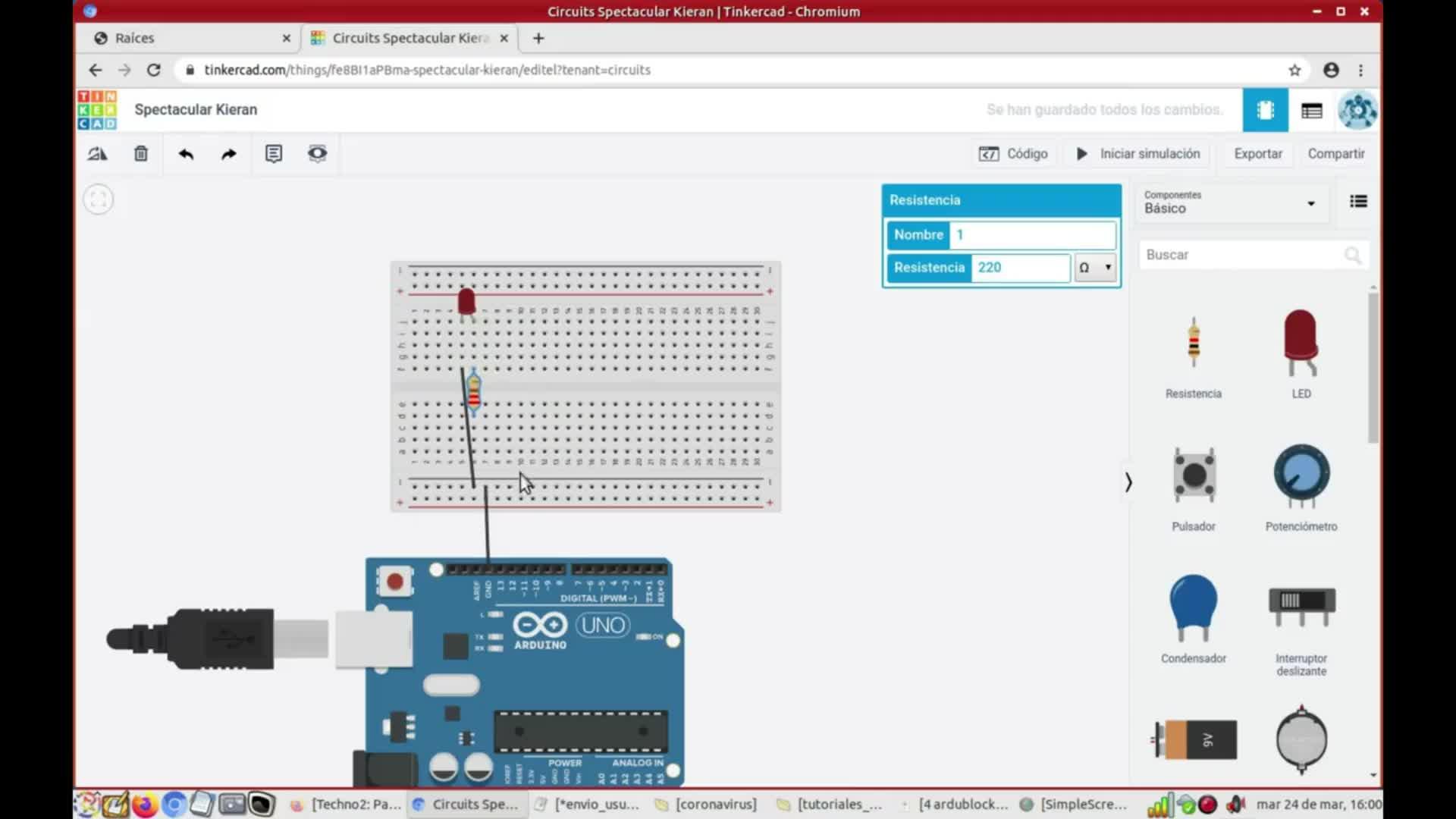

resistor and remember that the protection resistor
00:00:49
is always two hundred and twenty ohms
00:00:52
now we connect it from the anode
00:00:56
side and we're going to control the
00:00:58
LED using connector number thirteen or pin
00:01:01
number thirteen
00:01:05
I'm going to shift it over so
00:01:13
you can see it more clearly but
00:01:15
the connections exactly the same this way
00:01:16
it's just easier to see it and
00:01:18
this wire is going to be green
00:01:22
so now you can see that I
00:01:26
have closed the circuit for connector number
00:01:27
thirteen to the LED and we go
00:01:30
back to the ground
00:01:33
now this is the output part so
00:01:38
we can control the LED from the
00:01:40
arduino board which will either shine or
00:01:41
not it just depends on what we
00:01:44
want and how we program it
00:01:46
the new part is that we're going
00:01:50
to add a button and I'll drag
00:01:51
it over here so now here's how
00:01:53
we connect the button this is going
00:01:56
to be the standard way of connecting
00:01:58
a button every time we use one
00:02:00
we're going to use the five volt
00:02:02
connection from down here so we create
00:02:05
a wire
00:02:08
from that port
00:02:09
up here
00:02:12
and this wire will be red because
00:02:14
that is the standard wire color for
00:02:16
the five volt connection so now we
00:02:18
have the wire in this position and
00:02:21
from this side of the button we
00:02:24
will create a wire connected to position
00:02:27
twelve
00:02:30
so here from the side
00:02:34
drag it to twelve and this one
00:02:38
can be orange
00:02:39
and now we also need a pull
00:02:43
down resistor the pull-down resistor is going
00:02:44
to be ten kilo ohms
00:02:47
and it's going to be connected from
00:02:51
here remembering that the horizontal line is
00:02:54
connected to the ground so do you
00:02:58
see that
00:03:00
so now I will explain how this
00:03:04
works if the button is pressed if
00:03:05
you click on it while the simulation
00:03:08
is running there will be a connection
00:03:09
between this orange wire and the red
00:03:12
one
00:03:16
so because there's a connection from one
00:03:19
side to the other those five volts
00:03:22
will travel over here in pin twelve
00:03:25
but if we don't press the button
00:03:30
then there will be no connection between
00:03:33
these two points
00:03:34
so this point will be connected to
00:03:37
the ground through this resistor meaning that
00:03:39
we will have nothing here and nothing
00:03:43
and twelve
00:03:45
so if we don't press the button
00:03:47
we have zero in pin twelve but
00:03:48
if we press it then we now
00:03:51
have five volts because of the red
00:03:53
wire
00:03:55
now if any of this hasn't made
00:03:58
sense so far you can rewind and
00:03:59
just watch and listen to that explanation
00:04:01
again
00:04:03
now like always we need the program
00:04:06
so we're going to click code
00:04:10
and
00:04:13
now we want to remove the previous
00:04:15
program and the first thing we need
00:04:16
is an input
00:04:19
so we want this first block
00:04:23
up here because we want it to
00:04:26
read pin number twelve so that's what
00:04:28
we select it
00:04:31
and then we need something else called
00:04:33
a variable
00:04:36
now a variable is a kind of
00:04:42
box to store the value or number
00:04:44
that we have read
00:04:46
so we're going to click here
00:04:49
to create a variable and the name
00:04:51
for this variable will be input because
00:04:53
it's the one that we're reading
00:04:56
so now we are going to use
00:04:58
this block to define the input and
00:05:00
then connect the blocks together like this
00:05:03
so the right side is the reading
00:05:06
for number twelve and this reading is
00:05:08
going to be stored inside the input
00:05:10
like a box to save or store
00:05:13
this number for twelve
00:05:14
so now that we have our input
00:05:18
in the variable
00:05:20
we are going to add controls so
00:05:23
that we can check the value of
00:05:25
the input that we have and we
00:05:27
want to compare the input with the
00:05:29
value for example
00:05:30
so we need a block from the
00:05:35
math section
00:05:36
and we're going to use
00:05:40
this one here
00:05:44
we're going to use the section more
00:05:47
later but for now the only block
00:05:49
we're gonna use is this second one
00:05:50
so we can compare the two values
00:05:53
we can compare if one of them
00:05:55
is less than less than or equal
00:05:57
equal to not equal to greater or
00:06:00
greater than or equal to and right
00:06:02
now we want equal because we
00:06:04
you want to compare the input
00:06:06
yeah here's the input
00:06:10
so i don't want a number I
00:06:13
want two possibilities high or low because
00:06:15
these are digital inputs so we can't
00:06:18
compare using a number
00:06:20
so digital just means high or low
00:06:23
and analog means a value or a
00:06:25
number so if input equals high then
00:06:27
we must be pressing this button because
00:06:32
it's all related to twelve since that
00:06:34
value is stored here
00:06:36
and now we want to compare this
00:06:39
value too high
00:06:41
so that what happens if we press
00:06:44
the button so for instance if I
00:06:45
want number thirteen high well how do
00:06:47
I do it
00:06:50
so we need to define the pathway
00:06:54
for number thirteen
00:06:56
okay so with this program if I
00:07:08
press the button the LED will shine
00:07:11
first it reads the value stored in
00:07:14
input a compares the input with high
00:07:16
and then if the input equals high
00:07:19
then thirteen will be high
00:07:21
and see no in english means if
00:07:25
not or or else
00:07:28
so that's what happens if the condition
00:07:37
is not true because this is just
00:07:39
a condition
00:07:40
and what we want is if we're
00:07:43
not pressing the button
00:07:45
or if the input is low then
00:07:48
we will define that here
00:07:51
so now if we press the button
00:08:04
we've stored that value here and we
00:08:06
compare the value with high and if
00:08:08
the value is high then the lcd
00:08:10
will shine because it's connected to thirteen
00:08:12
and if the condition is not met
00:08:15
the LED connected to thirteen will not
00:08:17
shine it will be low
00:08:20
so now we have connected everything the
00:08:28
output part we have the input part
00:08:30
including the button and pull down resistor
00:08:33
and we have the block so we
00:08:35
have everything we need so if we
00:08:36
start the simulation nothing will happen yet
00:08:38
but if we press the button then
00:08:40
the LED will shine and if I
00:08:42
stop pressing the LED doesn't shine because
00:08:44
that's how we programmed
00:08:46
it so that's the exercise today just
00:08:47
repeating the example okay
