Hi, today we are going to learn how to use the online simulator called Tinkercad. 00:00:01
We are going to learn how to login, how to create circuits or 3D designs. We are going to study it 00:00:08
later in some months or weeks, I don't know, maybe months. And we are going to learn how to create 00:00:16
and as i said before and how to share these circuits with me and today in this exercise 00:00:23
we are going to learn also how to measure some magnitudes in the circuit okay the first thing 00:00:31

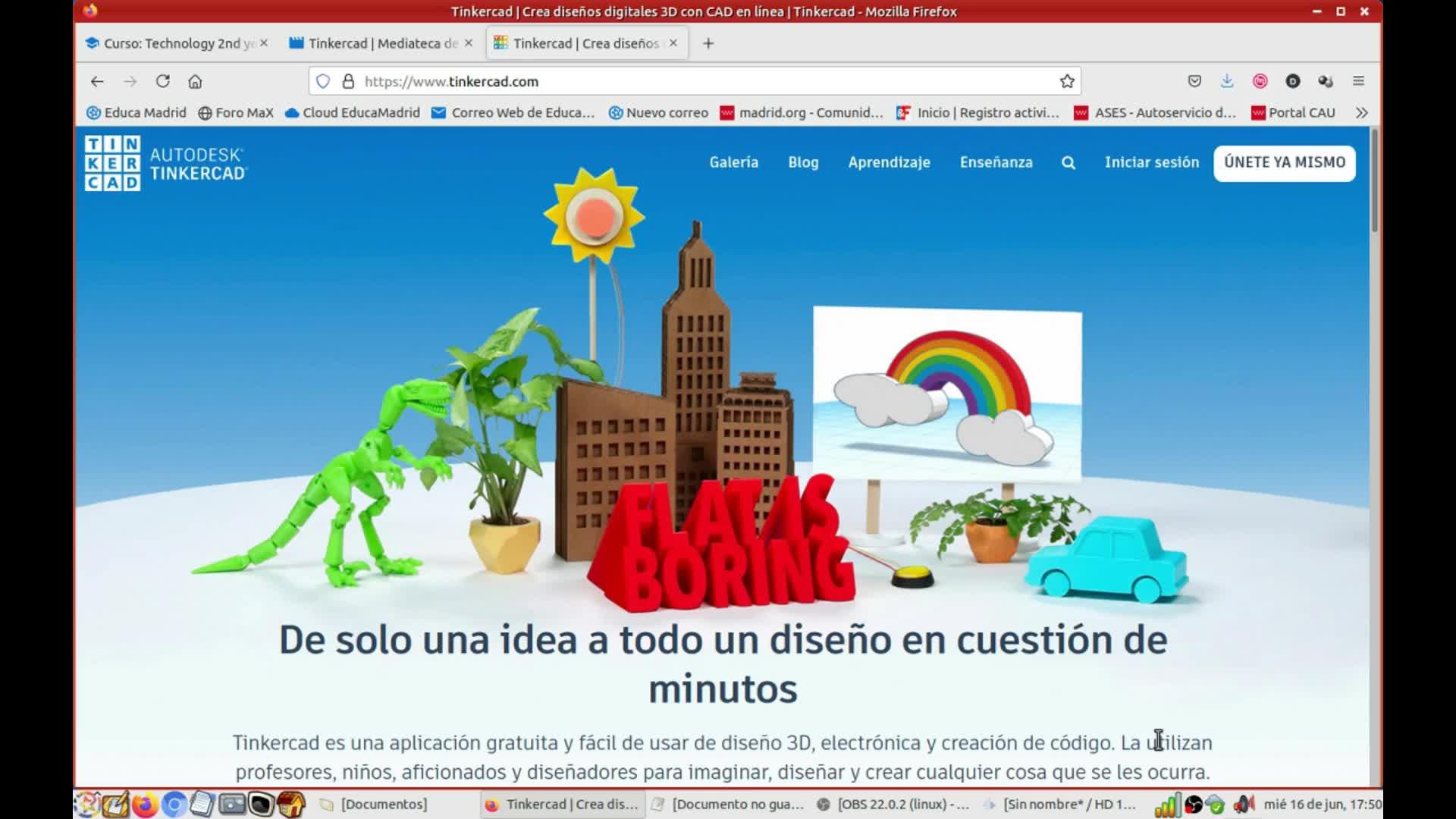

we need to to know is that the Tinkercad simulator is here in www.tinkercad.com 00:00:36
it's a web page you don't need to install anything just go to this web page and then 00:00:44
The moment you go here, we are going to click on login and then because we are students we are going to click here 00:00:50
Si eres estudiante, únete a la clase, click on it. And the first thing you will need is the code of the classroom. 00:00:58
I will give it to you. For instance, I have created this classroom for this example. 00:01:04
I want to copy the code and paste it because I don't know it by heart. 00:01:09
And now you need a second thing, you need a nickname, ok, you need a second apple. 00:01:13
We click on it, you need to enter the nickname. The nickname I will give it to you also. 00:01:20
I've created this one just for this example, I copy and paste it, and now I'm in. 00:01:26
And the moment you are in, as you can see here in my Tinkercad webpage, you will find different possibilities. 00:01:35
One of them is the 3D design blocks, for the moment we are not going to use them, maybe 00:01:42
in the future, but not for the moment. 00:01:49
Click on circuits here, and now here I have a lot of different circuits because I have 00:01:52
already used this website a lot of times, but your web page will be empty, there will 00:02:05
be no circuit, so what you have to do, you will click on create new circuit and here 00:02:16
you will create your own circuit, okay. 00:02:23
Here on the right, this window is a kind of new, a piece of news, okay, we can close it. 00:02:36
Here on the right there is the library and we are going to select all because we want 00:02:47
all of them and we are going to use different components for example for 00:02:52
example for example I'm looking for a power source I want to refer in Spanish 00:02:58
Fuente, it doesn't appear so I will look slide in the slide in them the one I'm 00:03:04
going to use is like a source of energy is going to be is going to be here 00:03:14
suministro de energía, okay? This is a kind of battery, okay? I also want some resistors, 00:03:20
they are here, I want to use them, three of them, I click and drag, click and drag, 00:03:28
and the values for them will be, I click on the first one and I want five ohms, 00:03:35
and I change, instead of using kilo ohms, I will use ohms. Next one will be a 10 ohms one. 00:03:41
10 ohms, 10 ohms, and this one will be a 10 ohms one, two, 10 ohms, okay, now I have three 00:03:50
of them, this way, this way, this way, and I will rotate this one, because I want this 00:04:02
circuit, the one we have, the example we, I used in class, so I'm going to create this 00:04:11
circuit if I click here here this one another wire from this position I'm 00:04:19
sorry it's not that easy as it looks but it's not very difficult okay here here 00:04:30
here and this one will be this wire will be from here to here because these two 00:04:39
ones are the connectors of the battery here so now I have this circuit 00:04:46
is the one we have used in the classroom. 00:04:54
Does it work? Yes, let's have a look. 00:04:58
If I click on the power of source, I will apply 5 volts voltage. 00:05:01
Don't worry about the current. This is not the current you are using. 00:05:06
This is the maximum current it will supply. 00:05:09
So, how can I simulate the circuit? 00:05:15
Just click in here, Iniciar Simulación, and the circuit is working. 00:05:18
this is the voltage I'm applying and this is the intensity that is crossing 00:05:22
the power source so we don't need to measure this intensity because the 00:05:27
source of energy is showing this to us anyway okay how to before before 00:05:32
sharing it with me we are going to measure things because this exercise is 00:05:43
about measuring okay I will use the multimeter if we click and drag and we 00:05:47
move down here I have a multimeter I can measure voltage intensity resistance I 00:05:55
want to use it to measure voltage so I will I'm sorry I will measure the 00:06:03
voltage of this resistor and if I start simulation again two and a half volts 00:06:10
the voltage here. I stop the simulation, I erase the wire, I erase the wire, I rotate 00:06:19
this one here, and I will measure voltage again. Here and here. I will measure the 00:06:28
voltage again. And again, two and a half volts. The voltage is the same just 00:06:38
because of the values of the of the resistors if I change one of them for 00:06:44
instance I will stop the simulation and I will change this one instead of being 00:06:49
five if it will be ten and now everything changes this one is not two 00:06:53
and a half anymore I'm providing five volts but here the intensity is different 00:07:00
okay anyway I will go back to five five ohms here okay fine perfect and if I 00:07:05
measure again, again two and a half. Okay, so everything works as expected. Okay, I 00:07:13
have measured, I know the voltage here, I have measured the voltage here, and I 00:07:19
know the voltage for these two resistors. What if I measure, I want to erase this 00:07:23
one, click on erase, okay, I don't know what happens here, oh no, it wasn't selected, now it was 00:07:37
selected okay I will measure now I want to measure the intensity that is crossing 00:07:46
this resistor how can I do it okay I will connect it this way so now the 00:07:50
multimeter is connected in series with this resist intensity and every electron 00:08:00
that crosses this resistor will cross the ammeter and I won't I won't use it 00:08:05
as an ammeter okay don't forget to change this the way it works if I click 00:08:11
again on Iniciar value, Iniciar Simulación, again I'm sorry, now it's measuring 250 mA, 00:08:16
okay? Okay, so again I will erase these wires and I will connect this one the same way as 00:08:25
it was connected before. If I won't connect it, well anyway, I don't have to measure this 00:08:34
this wire because here if I have a 500mA I will have 500mA here so the one I want to 00:08:38
measure is this one so what can I do I will erase this wire and this wire and I will place 00:08:48
the ammeter here this way and I will connect it this way and this one is going to be connected 00:08:59
to this one. So it's exactly the same circuit but every electron that 00:09:08
crosses this one will cross the ammeter and it will be measured this way. If I 00:09:17
click Iniciar Simulación and again 250 amperes because these two resistors both 00:09:23
of them have the same resistance. If I change one 00:09:28
of them, for instance this one, you will see that the intensity will change in the 00:09:34
first simulation and now it's different, okay? So now the exercise. You will create 00:09:39
a circuit like this one. Remove the wires to make it easier to show it to 00:09:47
you. You will create a circuit like this one and you will measure intensity here, 00:09:56
intensity here and voltage here and for the two of them so you will need you 00:10:05
will need one two three and four multimeters two of them to measure 00:10:11
intensity here and here and two of them to measure voltage for this one and for 00:10:19
these two ones okay four ammeters and two voltmeters you will place them in the 00:10:26
circuit you already have seen how to place them okay okay you now you know 00:10:31
how to do it but the problem is you don't know how to and share it with me 00:10:39
so if you want to share it with me you can share it with me just sending this 00:10:42
URL address to me okay this is the one you have to copy and paste okay the 00:10:50
editor is not compulsory, sorry, the editor part is not compulsory but anyway if you 00:10:58
paste it is fine anyway. This is the link and the one you have to copy. The moment 00:11:05
you open the circuit, copy, right click, copy and then you paste it in the 00:11:11
task. This way I will be able to have a look at it. Don't forget to use the four 00:11:17
multimeters, don't forget to place them properly, okay? The same way I have 00:11:23
already done that in the exercise okay so and that's all good luck 00:11:28
