Hey, welcome. Today we're going to take a look at something pretty incredible. How we, as humans, actually make stuff. 00:00:00

We're going to go on a journey from the simple brute force of a hammer all the way to the complex digital world of the hard drive. 00:00:08

It's a story that has shaped our entire world. So yeah, let's dive in. 00:00:15

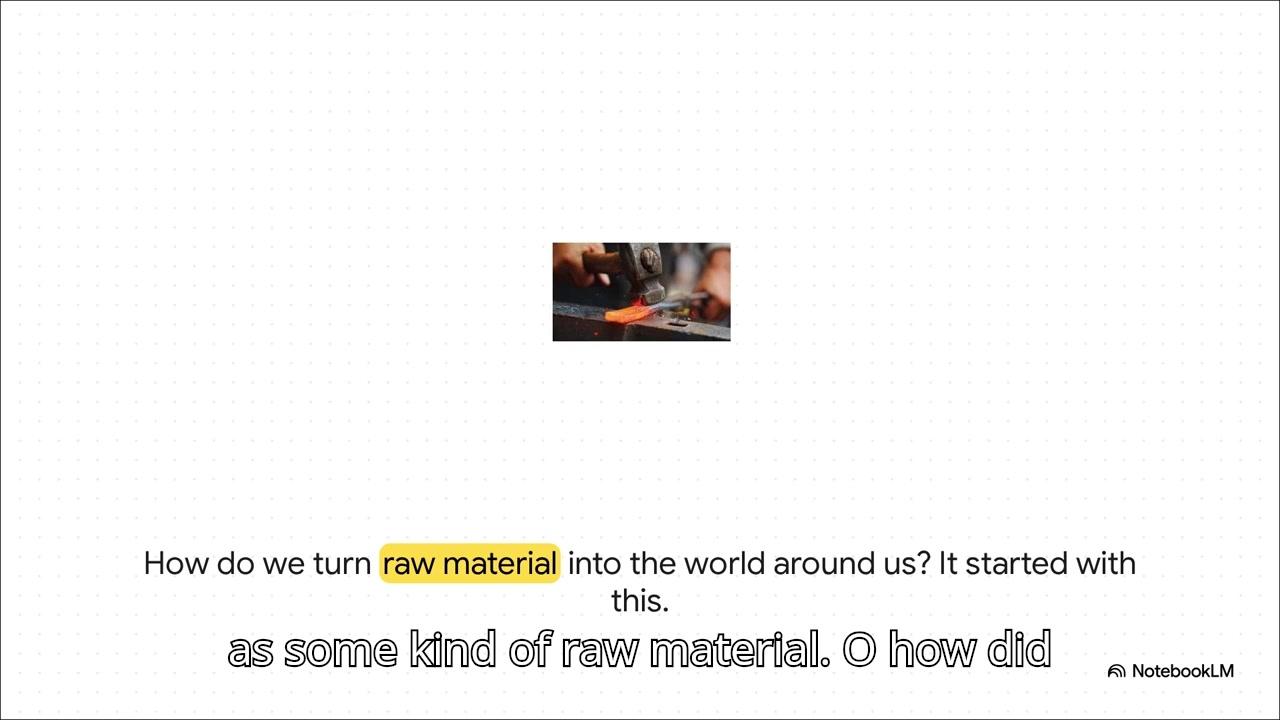

Just look around you for a second. Your phone, the chair you're sitting on, maybe the cup on your desk. 00:00:19

All of it started as some kind of raw material. 00:00:25

So how did we get from a lump of rock or a pool of oil to the world we live in? 00:00:28

Well, the whole story really begins with one of the oldest and most powerful techniques we've ever come up with. 00:00:32

Hitting something really, really hard. 00:00:38

And that, of course, brings us to our first big idea. 00:00:41

Shaping the world by hand and by hammer. 00:00:44

We're talking about the primal art of forging. 00:00:47

Long before we had factories or assembly lines, this was it. 00:00:50

This was the simple, powerful act of using force and skill to create. 00:00:53

At its core, this is what forging is all about. 00:00:58

You know, picture a blacksmith at an anvil, right? 00:01:02

They heat up a piece of metal till it's glowing hot, making it soft and workable. 00:01:04

And then, bam, they use a hammer to beat it into the shape they want. 00:01:09

Now, the technical term for this is plastic deformation, 00:01:13

which is just a fancy way of saying you're permanently changing the material's shape with force, 00:01:16

not just temporarily bending it. 00:01:20

Okay, but one person with a hammer can only make so much, right? 00:01:22

The Industrial Revolution completely changed the game. 00:01:27

It gave us a way to do these same kinds of things, but with the unbelievable power and precision of machines. 00:01:30

Craft was about to become mass production. 00:01:36

So how do you basically put a blacksmith on steroids? 00:01:39

Well, you build a machine to do the hammering for you. 00:01:43

And that process is called stamping. 00:01:46

Instead of a person making dozens or hundreds of individual hammer blows, a massive, powerful press slams a piece of metal into a mold, they call it a die, and creates a perfect shape in one single powerful movement. 00:01:48

And you can see exactly how it works right here. It is just incredibly efficient. One huge compression and poof, you've got a finished part. 00:02:02

This is the secret behind making millions of identical things super, super fast. 00:02:11

Everything from the panels on your car to the sink in your kitchen. 00:02:15

But, okay, what if you don't want a single stamped object? 00:02:19

What if you need something that's really long and continuous? 00:02:23

For that, we turn to a process called extrusion. 00:02:27

And honestly, the best way to picture this is squeezing toothpaste out of a tube. 00:02:30

The shape of the little hole at the end? 00:02:34

That determines the shape of the toothpaste that comes out. 00:02:36

So here's how it works in a factory. 00:02:39

You take hot, kind of gooey material, and you feed it into this chamber where a giant screw just forces it through a specifically shaped opening. 00:02:41

That's the die, again. 00:02:49

And the material just comes pouring out in one long, continuous shape. 00:02:51

This is how we get things like pipes, tubing, and even those really complex aluminum frames for windows. 00:02:55

Now for another really clever technique. 00:03:00

This one's for making hollow objects. 00:03:03

It's called blow molding. 00:03:05

and it's, well, it's a lot like blowing a bubble. You start with a hot, droopy tube of plastic, 00:03:06

you stick it inside a mold, and then you inflate it with a puff of air. And just like that, 00:03:12

the air pressure pushes that soft plastic out until it presses against the inside walls of 00:03:17

the mold. It cools down, and bam, you have a perfectly shaped hollow object. Seriously, 00:03:22

the next time you pick up a plastic bottle or a shampoo container, you are holding something that 00:03:27

was made with this exact ingenious process. So all these methods we've looked at, stamping, 00:03:32

extrusion, blow molding, they're all fundamentally mechanical. They need physical molds, presses, 00:03:37

and dyes to work. But over the last few decades, something completely different has emerged. 00:03:43

A whole new approach that doesn't start with a lump of metal or plastic, but with an idea 00:03:48

on a computer screen. So welcome to the digital manufacturing revolution. This is where things 00:03:53

get really interesting. In this world, the entire process, from that first little spark of an idea 00:03:58

all the way to the final physical product, is designed, tested, and perfected in a virtual world 00:04:03

before a single piece of real material is ever touched. And this whole thing follows a really 00:04:09

clear digital path. It all starts with CAD, which stands for computer-aided design. That's where you 00:04:13

create your 3D model on the computer. Next, you got to test it, right? So that model gets put 00:04:19

through the ringer virtually using CAE, or computer-aided engineering. You can test for 00:04:24

stress, temperature, anything. Once it's perfect, it moves to CAM, computer-aided manufacturing. 00:04:29

That's where the computer figures out exactly how to make it. And only then, after all that 00:04:35

virtual prep work, are the final instructions sent to the real machines. So the computer has 00:04:39

the plan, but how does it actually make the thing? Well, it turns out there are two completely 00:04:44

opposite ways to think about digital creation. It really comes down to a choice. Are you 00:04:49

going to build something up, or are you going to carve it away? 00:04:54

On one side, you've got additive manufacturing. This is what most of us know as 3D printing. 00:04:57

You start with absolutely nothing, and you build the object layer by tiny little layer 00:05:02

based on that digital file. Then, on the other side, you have subtractive manufacturing. 00:05:06

This is the opposite. You start with a solid block of material, and you use computer-controlled 00:05:11

tools to carve, cut and grind away everything that isn't the final product. It's just like a sculptor 00:05:15

carving a statue out of a block of marble. And this slide shows that difference perfectly. I mean, 00:05:20

look at this. On the left, you've got subtractive manufacturing in action. A tool is carving away 00:05:26

material to reveal the final shape. And on the right, you see additive manufacturing, where that 00:05:31

3D printer is literally building apart from the ground up. Two totally opposite approaches, both 00:05:36

being driven by the exact same digital blueprint. It's pretty cool. Now, this is way more than just 00:05:42

a neat new way to make stuff. This is a full-blown revolution that is changing entire industries. 00:05:48

So why does this matter? Because it opens the door to a level of complexity, customization, 00:05:54

and speed that was, well, it was basically science fiction before. And you can see the 00:05:59

impact of this everywhere. In medicine, for example, we're not just making generic parts. 00:06:04

we can 3D print a custom prosthetic limb that fits one specific person perfectly. 00:06:08

Or a surgeon can print an exact model of a patient's organ to practice on before a complicated surgery. 00:06:13

In aerospace, we're creating these impossibly complex parts 00:06:19

that are way lighter and stronger than anything we could make the old way. 00:06:22

From cars to buildings to fashion, 00:06:25

this digital approach is just unlocking a whole new universe of possibility. 00:06:27

So think about that for a second. 00:06:31

In the grand scheme of things, 00:06:33

We've gone from forging swords with a hammer and fire to printing custom body parts from a computer file 00:06:34

It's just a staggering leap and it really makes you wonder what on earth are we gonna make next? 00:06:41
