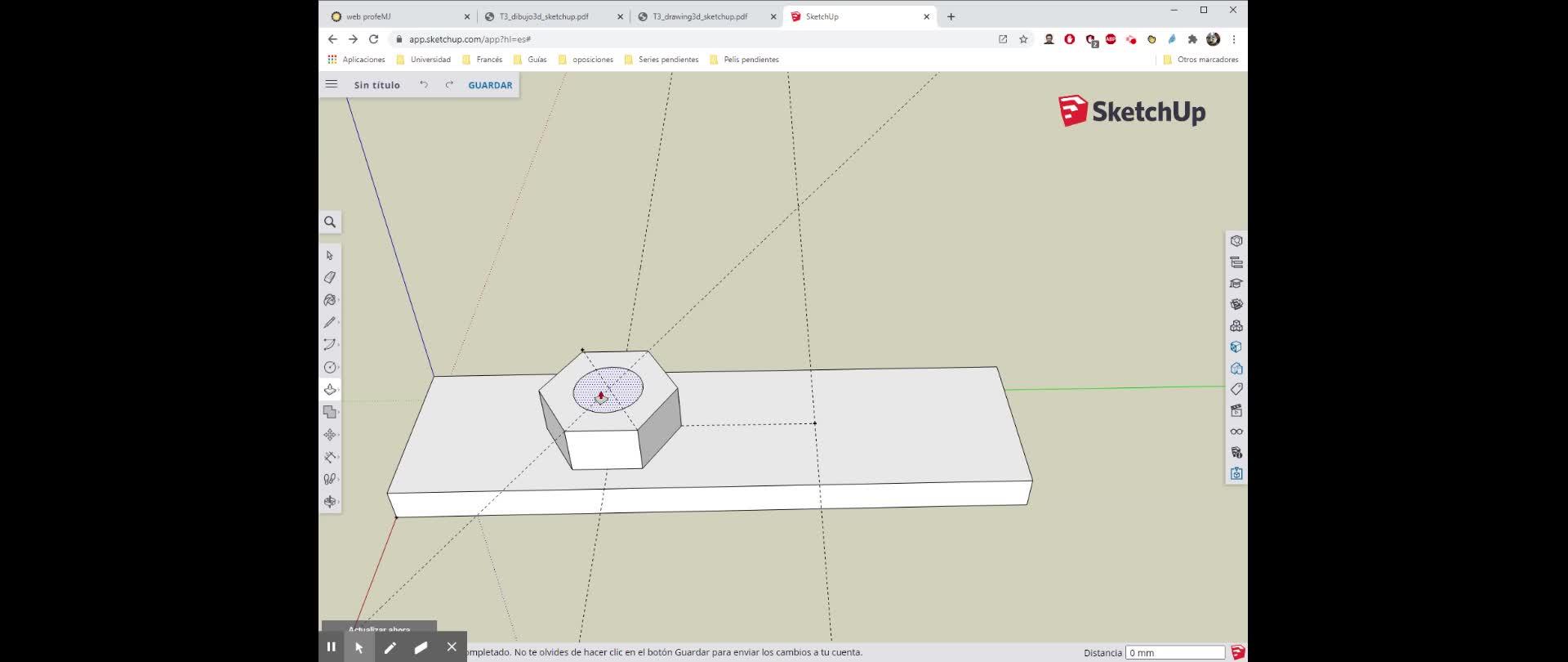

And this is the second video for the exercise number three of SketchUp 00:00:00
In the last one we finished doing the circle remember when 00:00:05
Doing the circle you have to put here with the keyboard the measure of the radius of the circle 00:00:09
If like in the announcement like here you have the diameter is 40 millimeters 00:00:16
For doing the circle here, you will have to write a radius of the half of it 20 millimeters 00:00:22
Once we have it, we see that it is 40mm ahead from the base of the hexagon, so we are going 00:00:27
to push it 40, we will write 40 with the keyboard and press enter. 00:00:37
After that we have to do here the hexagon and the circle. 00:00:45
In the announcement it says that this hole with the shape of an hexagon will have to 00:00:49
pierced through the entire piece so through entire object so instead of 00:00:53
doing first the circle and then the hole we are going to make the two things 00:00:59
first and then push each one separately so let's start with the hexagon with 00:01:04
hexagon we see that it is it has 50 millimeters of diameter from one side to 00:01:11
the other, so we will have to write the half of it as its radius. 25, enter. 00:01:18
Remember to do it like this, with the side pointing like this, like I made. If 00:01:33
you do it like this, this will be a mistake, because in the 00:01:38
announcement it says that it has to be this way. And now for the circles in its 00:01:44
have since it has 90 millimeters diameters it will have 45 millimeters 00:01:50
radius so from here we write 45 and will be like this so before elevating this part 00:01:56
we are going to make the hole here since this height is 20 millimeters we are 00:02:12
going to push this down 20 millimeters and it makes the hole automatically we 00:02:17
can if we are not sure we can rotate the camera to prove that it is made 00:02:28
properly and now we are going to elevate this other piece 130 millimeters like 00:02:33
this with this the shape of the object will be complete the next part will be 00:02:50
to give it color for the colors we will choose this tool and it will 00:02:55
automatically open different option of colors these options are for changing 00:03:02
all the object but we are going to choose this to apply different colors to 00:03:07
the base and to the objects inside it doesn't have to be exactly the same as 00:03:11
we have here is just enough to give different colors for each part or each 00:03:16
piece so like this for example we can give this this part this color also from 00:03:22
the inside remember to move the camera whenever you need now for this other 00:03:30
part here we are going to give this other color for the hexagon this one for 00:03:53
the base let's take this other and in the next video I will explain the last 00:04:20
step to finish this project and how to save and send it 00:04:45
