In this exercise I solve a parallel circuit

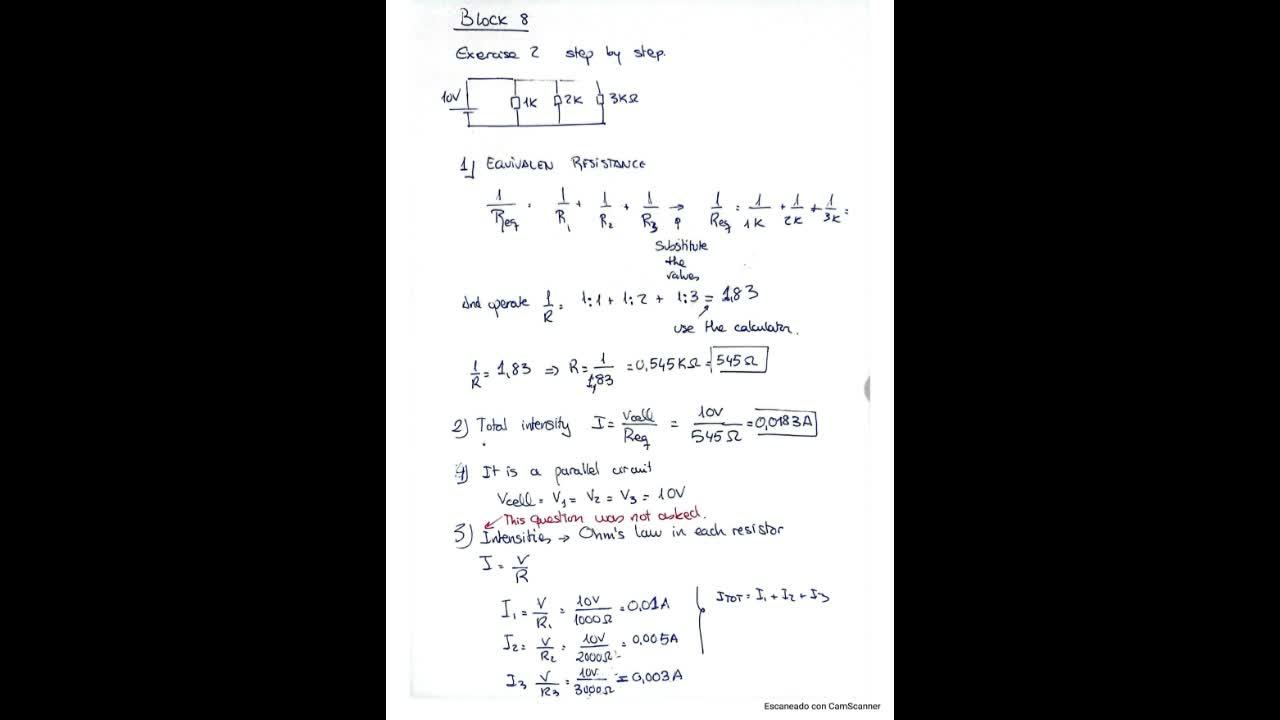

This is exercise 2 from block 8. We have a circuit with three resistors in parallel.
00:00:00
Remember this is the formula for the equivalent resistance in this case. Substitute the values of
00:00:07
the resistors. Use your calculator. You will need to calculate the inverse of the figure you have
00:00:13
obtained. Don't forget the units. In this case you have calculated it in kilo ohms but perhaps
00:00:18
is a good idea to convert it into ohms. The total intensity is the proportion between voltage of
00:00:24
the cell and the equivalent resistance you calculated before. It is a parallel circuit.
00:00:31
All resistors have the same voltage, the voltage of the cell. In this exercise they didn't ask
00:00:36
but the intensity can be calculated with the ohms law applied into every resistor.
00:00:43
Note that the addition of them should be the total intensity.
00:00:47
