Using a Hot Air Rework Station for Surface Mount Soldering
Ajuste de pantallaEl ajuste de pantalla se aprecia al ver el vídeo en pantalla completa. Elige la presentación que más te guste:
Today's video is about surface mount soldering using a hot air rework station.
00:00:05
The model I'm using is the 852A Plus from AOU, however you pronounce that.
00:00:10
This is a common model available worldwide.
00:00:16

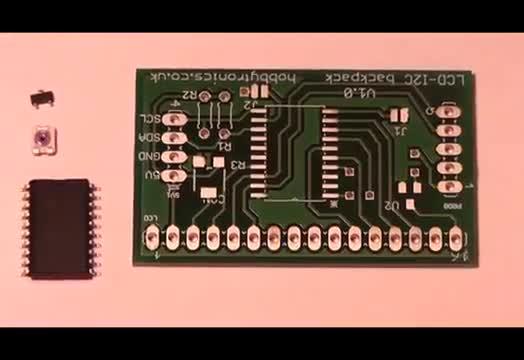

We're going to solder the components used in our own LCD backpack.
00:00:19
There is a 20-pin microcontroller, a MOSFET transistor, and a variable resistor, all surface
00:00:22
mount components.
00:00:28
We will also be using a laser cut stencil for adding the solder paste to the circuit
00:00:30
board.
00:00:34
The stencil is 0.1mm thick, which may not seem thick enough to apply sufficient solder
00:00:35
paste, but it is.
00:00:40
So let's get rid of the components for now and we'll apply our solder paste.
00:00:42
Line up the stencil holes with the component pads and add a blob of solder paste, either
00:00:53
from a syringe or from a little tub.
00:00:57
The perfect tool for spreading the paste is a craft knife blade.
00:01:04
Once your stencil is lined up correctly, hold it down to stop it moving and spread the paste
00:01:13
with the blade.
00:01:18
Lift off the stencil and check that the paste has transferred to the pads correctly.
00:01:55
Any problems, just wipe it off and start again.
00:02:00
We can clean up the stencil with the blade, scrape off the unused solder paste and then
00:02:10
wipe with a cloth.
00:02:13
Now we can add the components to our board.
00:02:19
A pair of SMD tweezers is useful here.
00:02:22
Drop the chip onto the solder paste.
00:02:28
Make sure the pads are aligned and give it a gentle press.
00:02:31
the solder paste will hold it in position. Now we add the transistor. Drop it into place
00:02:34
and a little press will hold it. Don't worry if it is not perfectly aligned. When the solder
00:02:51
paste heats up it will be pulled into position. Add the last component and we are ready for
00:02:55
the hot air station. I use a heat proof mat for the board to sit on. The hot air is coming
00:03:06
out at 350 degrees centigrade so don't do it on anything that will burn. The hot air
00:03:24
rework station is easy to use. Turn on the power and then turn on the hot air. Set the
00:03:35
required temperature, we use 350 degrees. The air flow can be left to the default. It
00:03:40
only takes a few seconds to heat up. Use the hot air gun about a centimetre from the board
00:03:47
and for transistors like this, move the gun in a circular motion. The solder paste soon
00:03:58
melts and the transistor is pulled into the correct alignment. For the chip, go up and
00:04:03
down each row of the pins. It will be obvious when the paste has melted. Give the chip a
00:04:10
little press to seat it firmly in the solder. Again, a circular motion is used for the variable
00:04:37
resistor.
00:04:43
And that's it. Check the board under a magnifying glass and rework any joints if you need to.
