All right guys, so today we're talking about the Workplane feature on Tinkercad. 00:00:01
So with this feature, we're able to create separate levels for our 3D figures to be built upon. 00:00:08

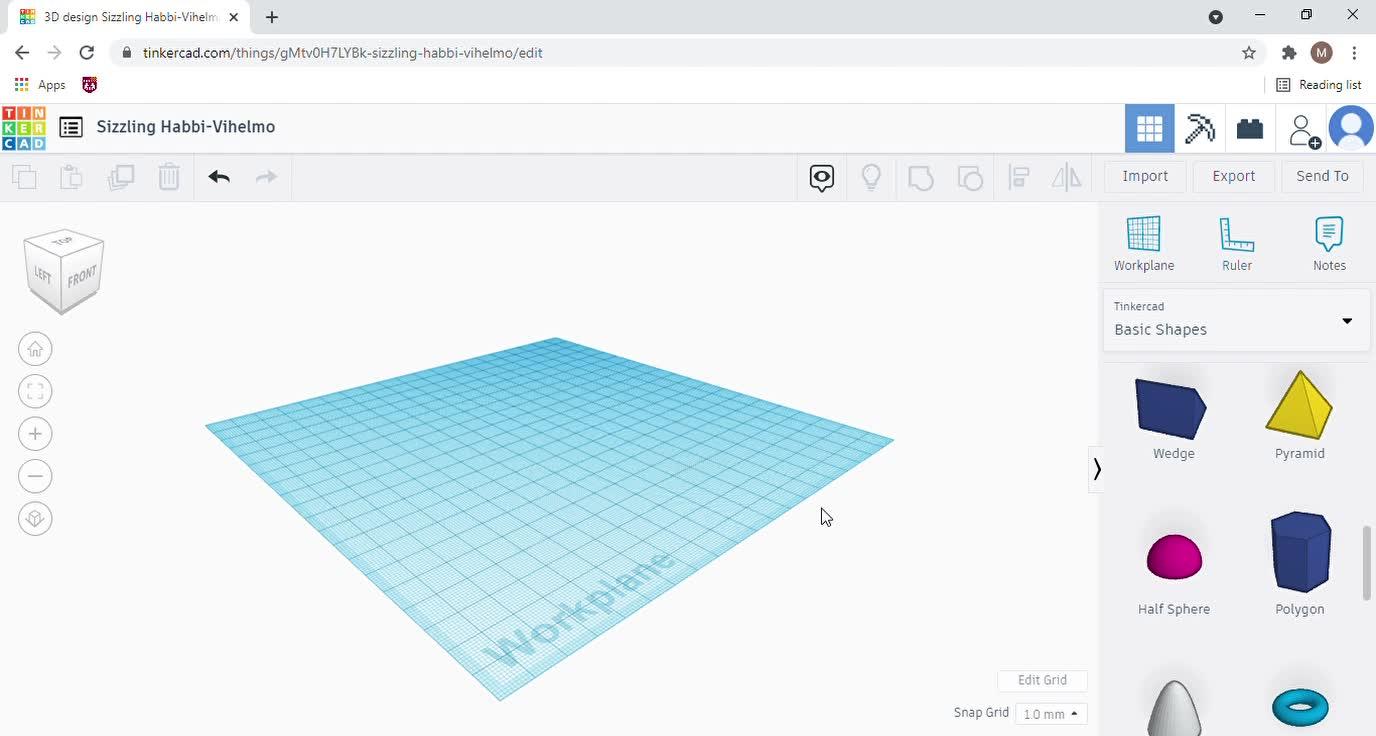

So you see right here, we have our original Workplane. 00:00:14
My Tinkercad is in English because I have an English computer. 00:00:18
But on yours, it's called Plano de Trabajo. 00:00:23
Excuse my pronunciation. 00:00:27
Um, so for this feature we're able to create separate levels for our shapes by creating 00:00:29
a separate work plane, right? 00:00:36
So when I put my box on this first work plane, it goes immediately on this blue level, right? 00:00:40
But say I wanted to put this box on top of the other box. 00:00:48
You see right now it's next to it, but it won't let me put it on top of it, right? 00:00:52
just goes through it and combines them. So how do I combine the two and put one 00:00:57
on top of the other? Well we do that by using the work plane feature. So the 00:01:04
work plane is more than just this bottom area for us to use. We can also use this 00:01:10
work plane button up in the corner to create separate levels. So for example 00:01:15
For example, when I click this, now you see that my mouse has a square that is showing 00:01:21
up on the work plane of this 3D design. 00:01:27
It's on the base one because this is a regular work plane that you start with, but we can 00:01:33
put it on our shapes to create new work planes for us to work with and have different angles 00:01:38
and levels, right? 00:01:44
So I could put one on the sides, but for this example I'm going to put it on the top. 00:01:45
So now you see we have a separate orange workplane that is above our original blue workplane. 00:01:51
So now when I place shapes out onto the workplane, it is on a separate level completely. 00:01:57
So now this box is on top of the other box, and these boxes are on separate workplanes 00:02:06
so therefore they're on separate levels. 00:02:14
We can move the box around and do everything we would do with the box on the original workplane, 00:02:16
but now it's just above it. 00:02:23
So we can go back to the original workplane by pressing the button again and selecting 00:02:26
the blue one. 00:02:30
We can combine these two boxes to make them aligned by using the shift button and the 00:02:33
left key button. 00:02:39
I'm on a laptop, so I'm not sure exactly how well this will work, but when we're in the 00:02:40
lab on the computers, it'll be much easier with the mice. 00:02:48
But I think I just got it, yeah. 00:02:54
So I think they're connected. 00:02:55
So yeah, they're connected now, and we can make them perfectly aligned. 00:02:58
And they're connected, right? 00:03:03
So that's how we can make blocks that have multiple levels, this can be used in many 00:03:07
different ways obviously, but for example we don't have to use just boxes. 00:03:12
We can use this with any of our different shapes. 00:03:18
The one that is the most interesting is our sphere. 00:03:22
So this obviously doesn't have one flat top or flat sides like our square does, but that 00:03:26
That gives us more opportunity to create angles that are more complex and more detailed. 00:03:32
You see as I select the work plane button and I move my mouse around the sphere, I can 00:03:41
create a work plane at any different point on the sphere. 00:03:49
So this really gives us a lot of options as to how we want to create different objects 00:03:54
and how they're stacked next to each other. 00:04:01
So I can put it right here. 00:04:05
And then you see, compared to the original work plane, that this is sideways. 00:04:08
And so when I put my box on there, it's going to go flat onto the work plane that I created. 00:04:14
So this puts that box directly at that angle that I made the work plane at. 00:04:21
So this is really helpful for putting things directly at an angle, creating very complex 00:04:27
shapes, and creating different levels with our shapes. 00:04:32
So this is a very useful tool that we'll be using other times in our 3D design. 00:04:37
Okay, see you later guys! 00:04:43
