Mr. Andersen contrasts series and parallel electrical circuits. A simulation is used to visualize electron flow through both circuit types.

Más información Transcripción

Descargar la transcripción

Hi. It's Mr. Andersen and today I'm going to be talking about series and parallel circuits. 00:00:00
These are a couple of different circuit diagrams. Remember this stands for a battery and each 00:00:11
of those stand for a resistor. And so this would be a series circuit. Remember it's a 00:00:15
closed circuit. So there's a loop where electricity can flow the whole way around. And then we 00:00:19
have three resistors. And so the electricity that goes through this has to go through these 00:00:24
as well. If we look at this one, this is one battery connected to three resistors as well. 00:00:29
But they're parallel to one another. In other words there's three loops that that electricity 00:00:34
can take. And so we call that a parallel circuit. Now the first time you look at a series in 00:00:39
a parallel circuit when it's actually connected there's some stuff that's not super intuitive. 00:00:45
In other words there's some weird stuff that takes place. But once you really understand 00:00:49
what's going on in both a series and a parallel circuit you'll do much better. And so today 00:00:53
I want to show you basically a parallel and a series circuit. A few demonstrations. And 00:00:58
I'm going to be using the circuit construction kit. This is at phet.colorado.edu. And I 00:01:05
would encourage you to go there and play around with it. It's the best way to learn about 00:01:11
electricity is to actually play around with it. Okay. So right here we've got two different 00:01:14
loops. This one is a, so this would be a battery right here. It's a 9 volt battery. This is 00:01:19
an ammeter which is going to measure the amps. We've then got wires connected to a light 00:01:24
bulb, back to a switch and then back to the battery again. And so this would be a series 00:01:28
circuit because electricity is going to flow in this direction through the battery and 00:01:32
then back, through the bulb and then back again. And so when I turn it on we can see 00:01:35
that electrons are flowing. We've got 0.9 amps and then it's running through a light 00:01:40
bulb. And so these rays around the outside of the light bulb show you how much light 00:01:45
is being given off from that. And so the first thing I'd like to do, let me turn that off 00:01:49
for just a second. So let me open that circuit for a second. Is kind of get a sense for how 00:01:54
much electricity is coming out or how much current is flowing through there and how much 00:01:59
light are we getting off of that. And now I'm going to add another light bulb. And I'm 00:02:02
going to put it in series. So let me add another light bulb here. And I have to break this, 00:02:07
split the junction. Connect to both sides of that. And let me move it down so it looks 00:02:13
a little better. Okay. So now we've got two light bulbs. We've got the same battery. You 00:02:21
kind of remember how much light we were getting at it before. And you remember the speed. 00:02:26
And so let's turn this one on now. Okay. So in a series circuit what we have now is those 00:02:30
two bulbs are not as bright. And the reason why, and if you remember how much speed we 00:02:37
were getting, how much current we were getting, remember it was 0.9 amps. And so in a series 00:02:44
circuit if we add more resistance we're going to decrease the amount of current. And as 00:02:50
a result we're going to have dimmer light bulbs. And so the current is going to be the 00:02:55
same through every component in a series circuit. And so the other thing about a series circuit 00:03:01
is let me try, let me remove this. So let me split the junction. Okay. So when I split 00:03:07
So when I split the junction there, I cut that wire and so it wasn't connected anymore. 00:03:14
And so both bulbs went out. And so the two things that you should learn, number one is 00:03:19
that in a series circuit all of them have to be working for current to flow. And the 00:03:23
second thing is that they all have the same amount of current. Volts is another thing. 00:03:29

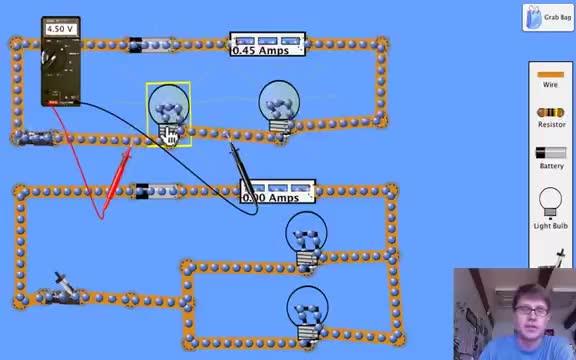

And so let's add a voltmeter as well. So if we add a voltmeter, this is a 9 volt battery. 00:03:34
If I look on either side of the light bulb we'll find that the volts are 9 volts. If 00:03:40
I move this lead over here, this electrode over here, we find that it's 4.5 volts. And 00:03:46
then if I shift both of them to this side of that light bulb it's 4.5 as well. And so 00:03:52
the sum of the volt or the voltage drop between the two components in that are going to equal 00:04:00
the volts that we have for the whole thing. So it's 9 volts. But then each of those bulbs 00:04:06
is going to be a drop of 4.5 volts. So we have 9 volts and then we have 0 volts when 00:04:10
we get to the other side. So let's get rid of that volt meter. And let me turn this one 00:04:15
off. And so let's return that for a second. So get a sense of how much light we're getting 00:04:19
from these two light bulbs. And we have 0.45 amps. And now we're going to look down here 00:04:26
at a parallel circuit. And so a parallel circuit there are two parallel pathways. In other 00:04:32
words there's a wire that goes through this bulb and a wire that goes through this bulb. 00:04:37
And so when I turn this on there's a clear difference between the two. And the first 00:04:42
time I saw this it was totally confusing to me. In other words these two light bulbs are 00:04:48
as bright as that one light bulb was before when it wasn't in series. And so the first 00:04:54
thing that should stand out to you is that these two bulbs are as bright as that one 00:05:00
bulb when it was, before it was hooked up in series. And so another thing that's happening 00:05:05
is that we actually have way more amps moving through this. And so you can see that the 00:05:11
electrons are moving more quickly. And so the difference between a series circuit and 00:05:15
a parallel circuit is that the current is actually increased. Remember when we had, 00:05:21
go back and remove this and just connect it together. So remember here we had 0.9 amps 00:05:26
for one light bulb. But here we now have 1.8 amps. In other words the electricity is actually 00:05:33
flowing faster. Why is that? Well here there is the current of this thread. And there's 00:05:38
the current of this branch. And the two currents together are going to sum up to this current. 00:05:45
And so before when we were saying the voltage drop in each of those sums up to the voltage 00:05:52
of the battery, well in a parallel circuit those two pathways, in other words those two 00:05:57
currents are going to sum up to the current of the whole branch. Another thing that happens 00:06:01
in a parallel circuit, let's kind of remove this light bulb. And so remember when I removed 00:06:08
a series light bulb the whole thing went out. But in a parallel circuit when I remove one 00:06:14
of those light bulbs. The other one keeps moving. Now you should have seen that when 00:06:19
I removed that light bulb the amps dropped down to 0.9. And electricity isn't flowing 00:06:24
through this side. But by hooking it up this way we've now got electricity or a path for 00:06:29
electricity to go. When I was a kid I remember we had a string of light bulbs that were hooked 00:06:37
up in series. And it was the most annoying light bulb strand that you could have for 00:06:42
Christmas lights. Because if you ever had one bulb go out on a series circuit then the 00:06:47
whole thing was broken all the way down. So you had to search through that string of lights 00:06:53
until you found the one that was burned out. Now they use parallel circuits. And the reason 00:06:56
they do that is you don't get that drop in current with each bulb. And the other thing 00:07:01
is that you can have a break in one of the bulbs and the other ones are all going to 00:07:06
work. And so that's kind of an introduction to series and parallel circuits. Remember 00:07:10
in a series circuit the current is going to be the same through every part of that loop. 00:07:16
But in a parallel circuit it's going to be the sum of the two will be the sum of the 00:07:25
current through the whole of the circuit. And the voltage drop, if we add our voltmeter 00:07:29
in a parallel circuit, it's going to be the same along each thread. So remember this would 00:07:35
be a 9 volt on this pathway. But it's also going to be a 9 volt on this pathway. And 00:07:42
so you're not getting anything for free with a parallel circuit. You're actually going 00:07:50
to go through more energy using this setup than you would over here because you're actually 00:07:54
gathering more amps. So that's parallel and that's series circuit. And I hope that's helpful. 00:07:59
