Hello class in this video I'm going to teach you how to get the electronic
00:00:03
configuration for some elements depending on the different energy of the
00:00:07
orbitals and how to write it. So let's start with something simple okay let's
00:00:12

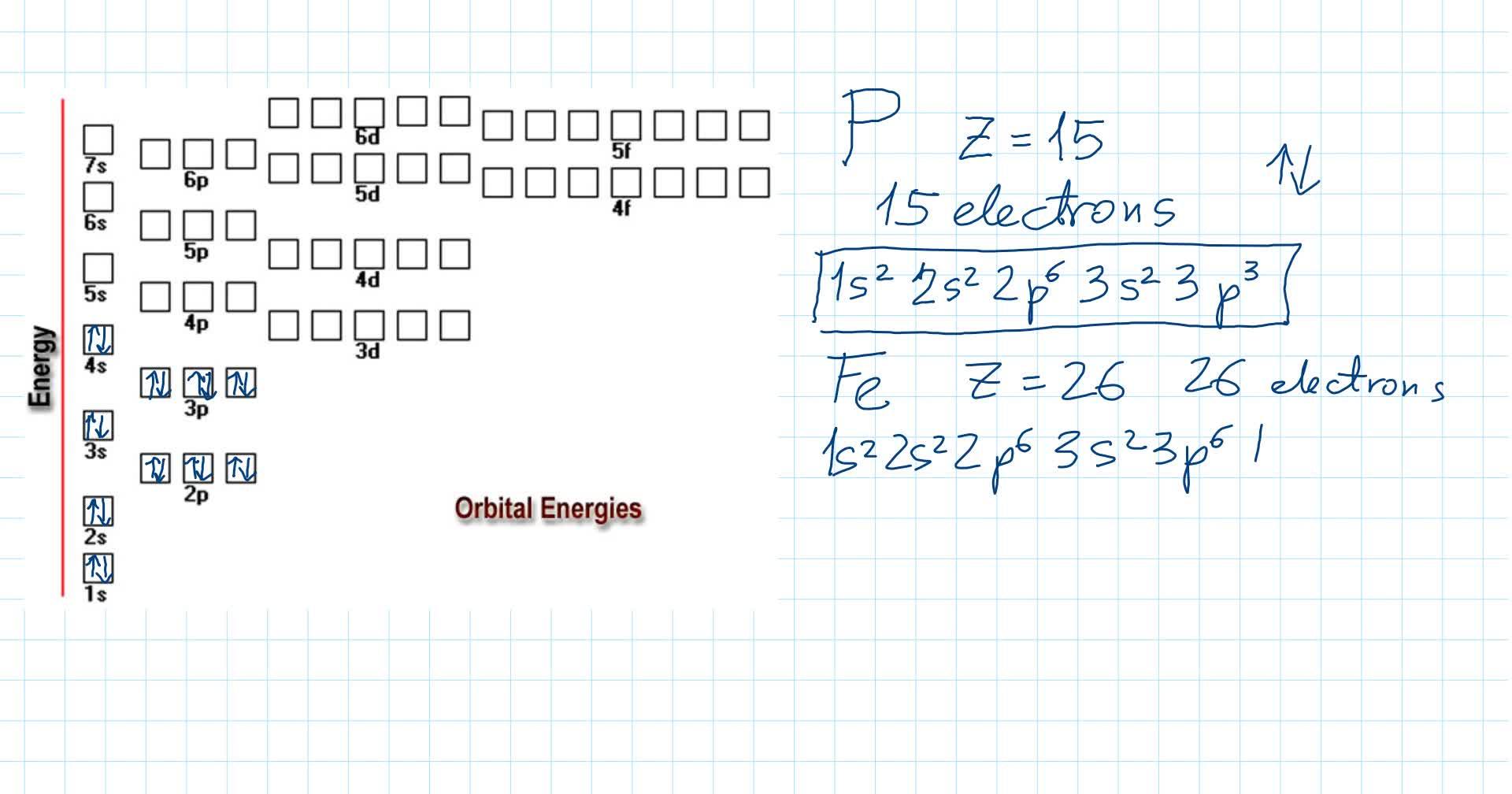

start for example with this element phosphorus okay phosphorus you can
00:00:18
look it up in the periodic table has an atomic number of 15 which means
00:00:26
that its nucleus has 15 protons and it has 15 electrons in the cell that we
00:00:32
place in the different orbitals. So we are going to start counting electrons.
00:00:45
Remember we are going to represent electrons like these little arrows
00:00:49
upwards and downwards and we're going to place them here in these boxes that are
00:00:53
the orbitals. So we start here with 1s, one, two electrons. So the first two
00:00:57
electrons of this 15 go to the 1s orbital, we write that
00:01:03
information as this, we go on, more electrons here, more here, okay let's
00:01:09
count how many we have for the moment, it was 2 and 2, 4 and 6 more here, that is
00:01:22
10 we are now we have 10 electrons we indicate the 2s of electrons like this and the 2p electrons
00:01:28
we indicate like this still five electrons to go so i need to place five electrons more
00:01:37
so two go here i have 12 right now and i have three left one two and three and we're done
00:01:43
we finish how do we write this so in the 3s orbital i have two electrons and then in the
00:01:54
three p orbitals i have three electrons this is the electronic configuration for phosphorus
00:02:02
okay let's go with another element a little more with more electrons like
00:02:12
ion okay ion has an atomic number of 26 meaning that i have to place 26 electrons in its orbitals
00:02:20
i'm going to use this i have already placed 15 so i still have 11 electrons to go
00:02:30
okay so this is 12 as you can see here i have three here not to place three more
00:02:42
okay so it's 3p6 right now i have 18 electrons still eight electrons to place and then
00:02:50
there is a significant jump instead of filling the 3d after the 3p 4s
00:03:00
go first because it has less energy you can see it's it's down in the diagram in the diagram
00:03:08
it's below 3d so it's 4s2 okay and we have a still let's say i say this was 10
00:03:16
still six electrons to uh yes six select six electrons electrons to go and this is
00:03:28
electrons are going to go here one two three four five and six and they represented like this
00:03:35
three six okay so to write the electronic configuration of an element i only need to
00:03:46
know how many electrons the element has and how to distribute this and what is the
00:03:55
difference energy of the orbitals goodbye
