ISOMETRIC PERSPECTIVE - Contenido educativo
Ajuste de pantallaEl ajuste de pantalla se aprecia al ver el vídeo en pantalla completa. Elige la presentación que más te guste:

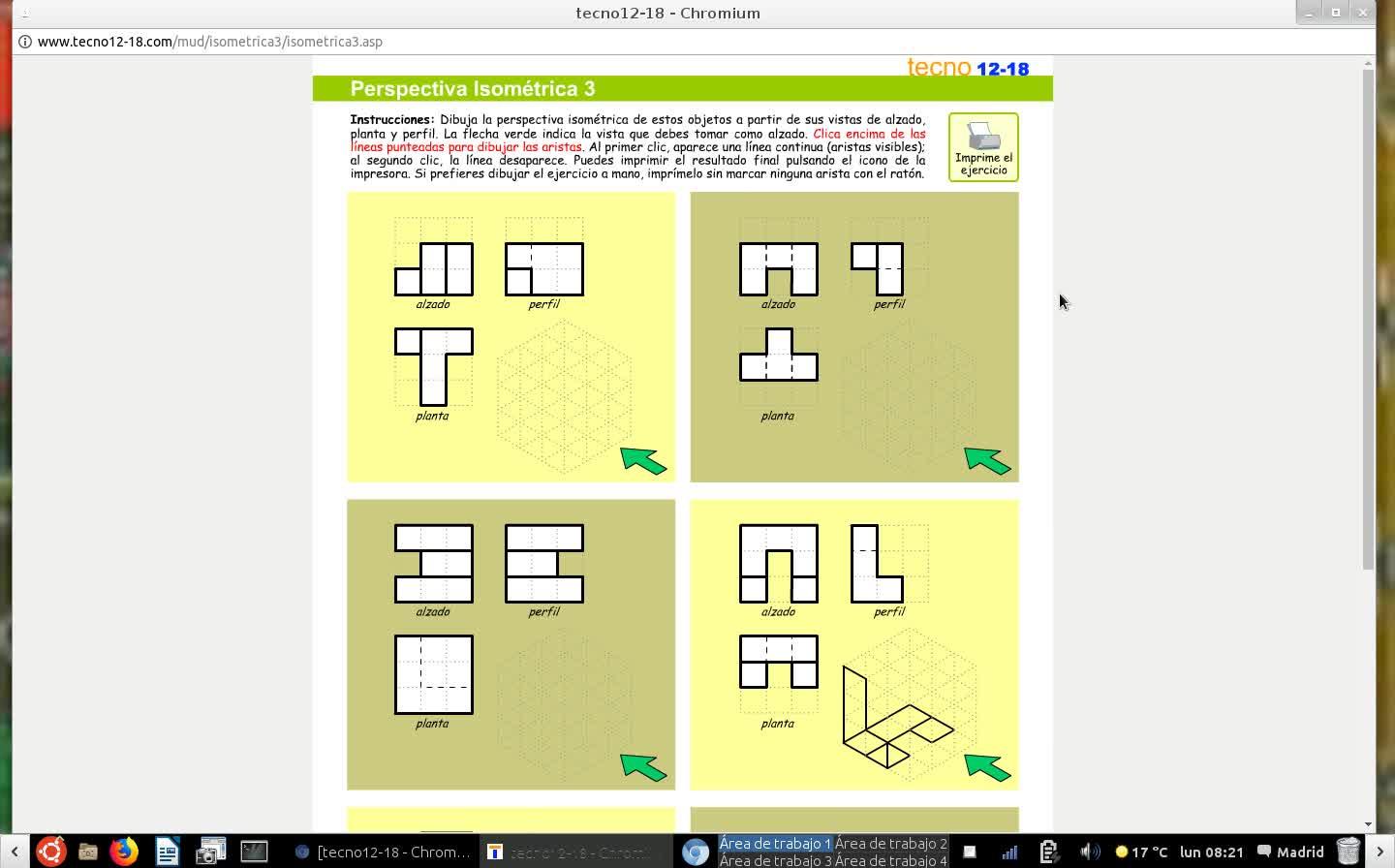

Well, today we are going to learn how to transform an oxide which is drawn in European system into isometric perspective.
00:00:00
It's not very easy, and the same I say to the European system, there isn't a new recipe. It depends on you, it depends on the objects that you have been drawing, it depends on so many things.
00:00:17
So, my advice is to be very intuitive.
00:00:42
One thing you can do is draw the plant in a bottom of a cube, which is isometric, and
00:00:53
The characteristic of an isometric perspective is that the three axes of the space are 120
00:01:03
degrees one to the other.
00:01:15
The angles are the same for three axes.
00:01:22
So, in this case, for example, I have represented the plant in the bottom of the isometric cube
00:01:27
and one of the views, which is the left elevator.
00:01:39
So, in order to build the figure, you could be very intuitive, as I said before, but obviously
00:01:48
Another thing that you can do is identify the very small pieces of this figure.
00:02:05
For example, here in the front elevator, I can see these squares, and here in the plant
00:02:20
also, which aren't in, which here is, has a shape, so, what I'm going to do is start
00:02:35
for this, with this, with this part,
00:02:57
which obviously means that something like this.
00:03:04
And it's very possible,
00:03:38
taking into consideration the front view,
00:03:45
that here this is a hole so I think it should be something like this well it is
00:03:49
It is because, as you can see, this view is the front elevator, this view is the plant and this view is the right elevator.
00:04:58
So, this is the object which is represented with this.
00:05:26
It's not easy. It depends.
00:05:32
For example, in this case, you should do more or less the same.
00:05:36
