Well, as you know, when you know that the computer is very important in so many fields and also, obviously, in design. 00:00:00
So, there are a lot of programs such as KUGAD which is a good tool to do different design. 00:00:18
I can use it to express our project doing this type of files. 00:00:33

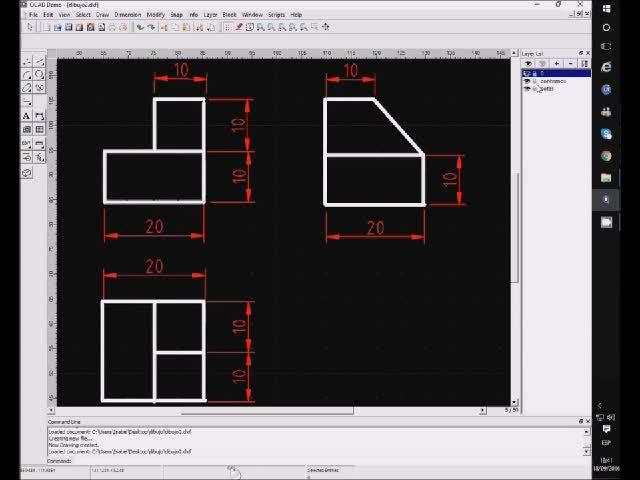

In this picture, we just explained how we can use this program to do isometric perspective. 00:00:47
As you can see, it's very easy because you just only need to have to select the view, 00:00:57
and when you have selected the view, you can transform the view into isometric. 00:01:05
So, you can use one of the views and convert the view into isometric perspective, and if 00:01:13
you have to use isometric perspective, then it is very easy that you can build the final 00:01:24
using this program, as you can see in this video, we have the two views, which is the 00:01:38
front elevation and one of the, in the left side elevation, so, with this, the last one, 00:01:48
This is the plan, in the right position, we just undo, the only thing that we have to do is to use our knowledge of geometry to build the figure. 00:02:02
And in order to do this, you can change the difference line and change its position to 00:02:23
the right position until you have the figure. 00:02:35
This is very easy, because it's very easy using this kind of program, as you can see, 00:02:42
you have transferred the blue using the isometric axis, and then now you can move or copy the 00:02:53
lines one by one until you have built the figure correctly this is the first so you move and then 00:03:04
delete the other one move the other one 00:03:20
to the right position we have at the bottom and at the middle 00:03:27
It is really easy and really funny and it is the only way that can help you to do the figures. 00:03:47
Just move it to the right position in the Z axis. 00:04:22
Select and move, select and move, it's very easy, just only select and move, and then 00:04:31
we need also to change the type of line, yes, this is the another line, and we can change 00:04:51
continuous line to this continuous one because there are a lot of parts in the figure that you can't see 00:05:39
but these these are lines that obviously resist 00:05:49
So as you can see, using local cut, you can read the part, you can use this example, and 00:05:54
it's a matured perspective. 00:06:24
This line, for example, you can see, because it's inside of the figure, so if you want 00:06:26
keep this line, keep it to change the type of line, you can't do this line but in discontinuous. 00:06:36
The same as this other and so many lines is the same. 00:06:47
What will happen as you can see is that sometimes the program 00:06:53
But you must be safe and learn to relate the program with the figure, because it's not the total program. 00:06:58
But here you can finish very easily this part, because you just only can change three lines. 00:07:11
is another continuous line yes and we have another continuous line and two other which 00:07:23
are discontinuous so you can delete it i recommend that you delete it don't use the discontinuous 00:07:37
type because sometimes it's clear 00:07:46
so moving the lines or drawing the lines 00:08:09
is easy to do the pieces in this way 00:08:16
but i think you can see the figure now because it's really easy 00:09:19
It doesn't matter if you need to repeat it more than one time, because you are learning 00:09:26
and sometimes the use of mouse makes so many hours of training. 00:10:15
It's not easy sometimes. 00:10:25
We usually use the nose, but indeed you need a training to be good with the nose. 00:10:27
But the line is not necessary, I think. 00:10:38
at a new line so we need to delete this line because there isn't any yeah this 00:10:42
line is delete so now we have the figure in a symmetric perspective you can compare 00:11:34
but that it is not the end yeah and it is so now we have the exercise the 00:11:47
to that exercise. 00:11:59
We have already studied about different types of ways that you can do lines using the cut 00:12:00
that and now you need to convert the figure into isometric and this is all for today 00:12:22
i hope it can be useful i see you in the next video 00:12:31
