Text recognition with LearningML and Scratch

Welcome everybody to the tutorial Text Recognition with LearningML and Scratch. 00:00:00

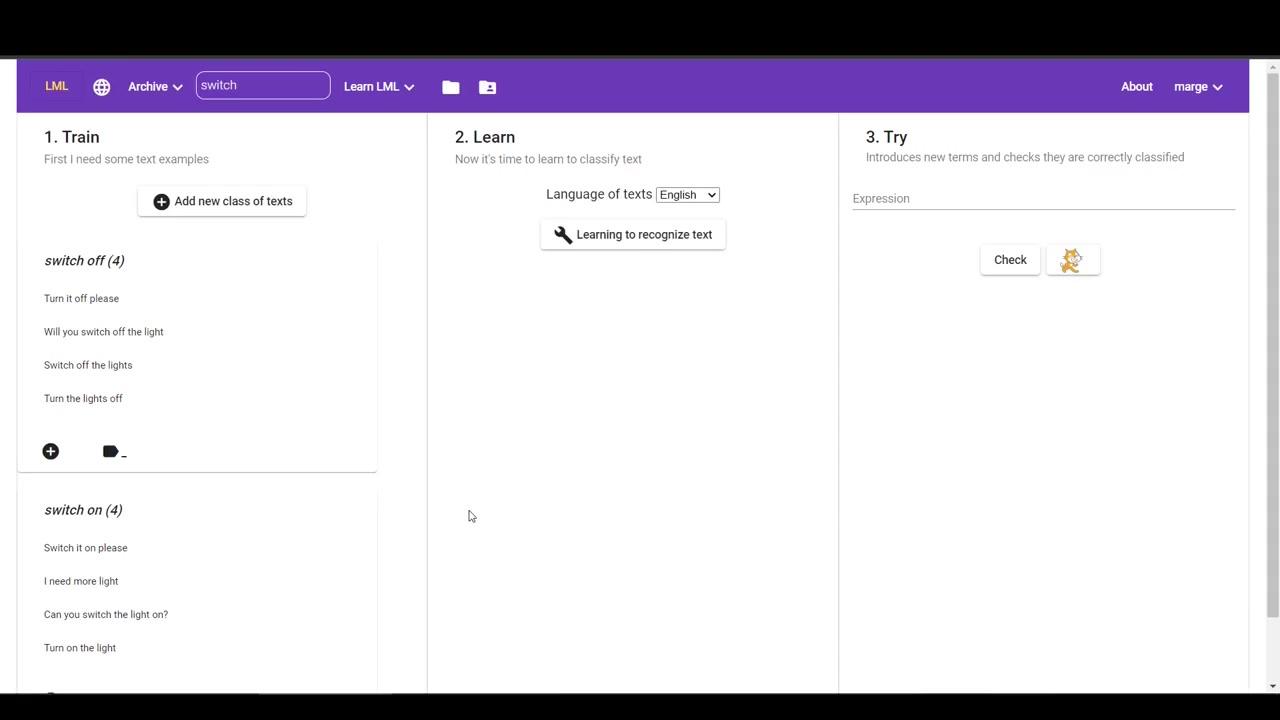

We start by navigating to the LearningML platform. So last time, I saved the project to my account. 00:00:05

So I can now easily retrieve it by going to My Things and loading the projects. 00:00:11

So this way, I don't need to create the classes again and add all the training examples. They're 00:00:18

already there. You can also upload projects that are saved on your computer. So let's train the 00:00:23

model and once it has trained let's go to the programming platform by clicking on the scratch 00:00:28

icon okay so we're now in the scratch programming platform to which we have added our own blocks so 00:00:35

today we will work with the learning ml text blocks so let's let's try it so what did we 00:00:44

want to do well we want to have a virtual assistant um let's add a costume for our 00:00:51

virtual assistant. So let's search for robot. Let's pick the retro one. Has it 00:00:55

been added? Yes. And let's remove the two others. Let's add some code for our robot. 00:01:07

So we want to have a nice robot, so it should talk to us. Hi there, I am your 00:01:13

assistant and then it should ask us what we want him to do and we can find this 00:01:24

in the light blue colored blocks so he asks us a question how can I help you 00:01:33

and let's also add an event to start this sequence of blocks okay so let's 00:01:43

click on the flag and our robot says how asks how can I help you and a prompt 00:01:51

appears so let me write there lights off and nothing happens that is because 00:01:59

we're not telling the robot to do something with that answer so let's 00:02:08

let's add that so we have here the block answer so that is what we just that is 00:02:16

our input. So, for now, let's start with something easy. Let him just repeat the answer. 00:02:23

This. And let's try again. So, the prompt appears. Lights off. And he just repeats our answer. 00:02:30

Okay. But we don't want him just to repeat the answer. We want him to understand what we want. 00:02:44

So let's use our AI model. 00:02:50

And we have a block that says classify text. 00:02:54

So it takes a parameter text. 00:02:57

So that is our input, our answer. 00:02:59

So let's move answer there. 00:03:01

And let him repeat this. 00:03:06

Lights off. 00:03:13

And now he repeats switch off. 00:03:15

So the label, the predicted label for our input is switched off. 00:03:19

and our robot has repeated that prediction that label okay so but that's not everything 00:03:24

we also want him to do something so let's add a backdrop so we can actually switch a light off 00:03:34

and on so let's find one um let's take a bedroom this one let's move our robot a bit here okay 00:03:40

let's go back to the backdrop let's give it a name so this is the one where we have the lights 00:03:51

on and then we have another one um let's rename this as lights off and let's hack it a bit 00:03:58

um so let's add a rectangle here a bit clumsy like this and let's make it dark 00:04:08

and let's call this lights off. So, let's add some code for our backdrops. 00:04:22

So, let's think of it first. So, what needs to happen is the following. So, when the robot 00:04:33

receives an order, it should send a message to the current backdrop to change. If the message 00:04:38

is switch on, the current backdrop should change to the lights on backdrop and otherwise, when it 00:04:45

receives switch off the current backdrop should change to the lights off backdrop so how are we 00:04:51

going to do that well we have other blocks for that so we have event blocks when i receive 00:04:57

a message so we're now adding code to the backdrop 00:05:05

so let's add a new type of message the first one switch on and we have a second message 00:05:10

We have two types of message. 00:05:19

One is switch on, the other one is switch off. 00:05:22

So we have two messages. 00:05:27

What do we need to do? 00:05:28

We need to change the backdrop. 00:05:31

So we need to change the looks. 00:05:33

So that's in the purple blocks. 00:05:35

So what needs to happen here? 00:05:37

Well, when the message is switch on, the backdrop should change to the lights on backdrop. 00:05:38

When the message is switched off, the backdrop should change to the lights off backdrop. 00:05:46

Okay, so that's the code for our backdrop. 00:05:52

Let's now go back to our robot. 00:05:56

So let's run the program just once more, see what happens. 00:06:01

So off, let's be really short now, switch off. 00:06:07

So nothing has changed because the backdrops, they haven't received any message. 00:06:11

So the robot needs to broadcast the message and for this we have other event blocks. 00:06:16

So the robot needs to broadcast the message it has just received. 00:06:26

So let's add another classified text together with the answer. 00:06:33

So now it will just repeat, it will say what it will do and then it will broadcast that 00:06:44

message, such that the backdrops, the current backdrop will change. So, hi there, I'm your 00:06:49

assistant. So, lights off, switch off, and the backdrop has changed, and the lights are off. 00:06:56

So, let's switch them back on. So, switch on, and the light is back. So, this is just a very simple 00:07:06

illustration of how you can use the AI models within Scratch. Other examples can be found 00:07:20

on the LearningML webpage and our FIAS project page. See you in a next tutorial! 00:07:26
