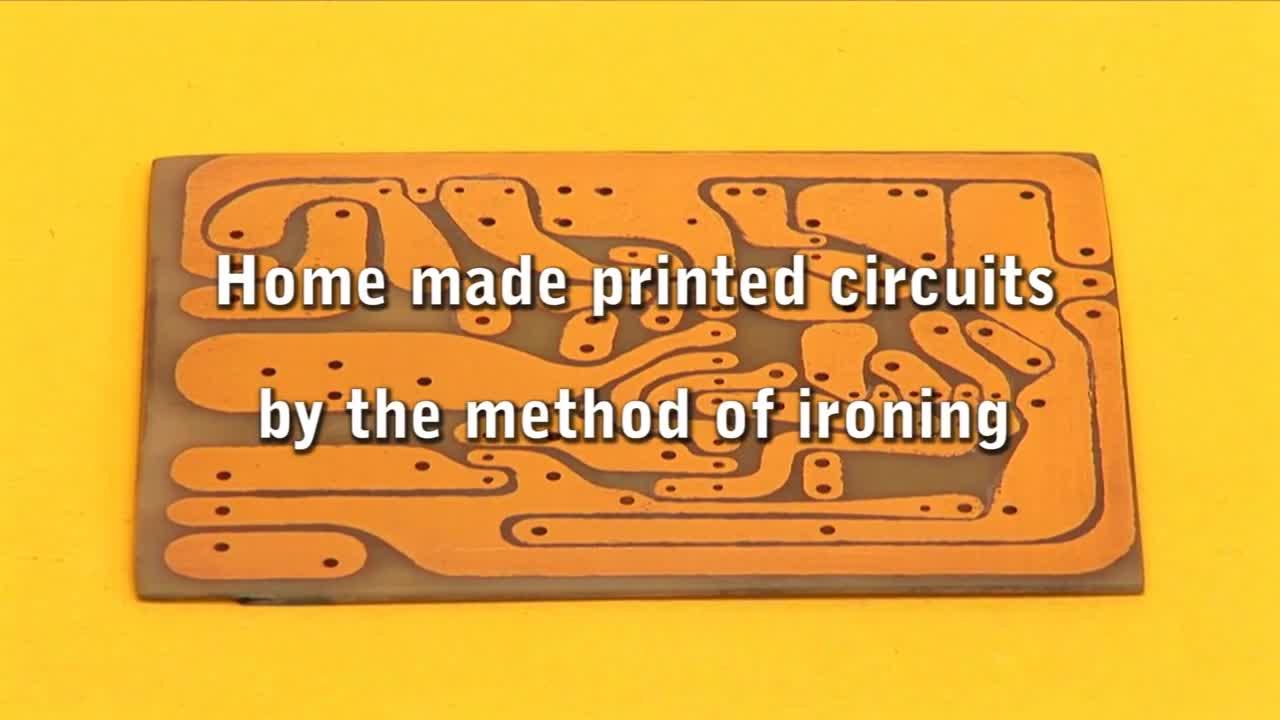

Homemade printed circuits by the method of ironing
00:00:04
The making of printed circuits by thermal transfer is a pretty cheap technique used to create prototypes or printed circuits of medium complexity.
00:00:08
Materials
00:00:22
Thermotransferable paper
00:00:25
The impression should only be done with a laser printer.
00:00:32
Bakelite
00:00:35
Plastic phenotypic foil covered with a copper foil, which will print the drawing board.
00:00:41
Ferric chloride.
00:00:51
Corrosive compound used for developing the PCB.
00:00:52
Chisel.
00:00:58
Tool used for cutting bakelite.
00:00:59
Electric iron.
00:01:04
Used to iron the drawing board until it's transferred to the bakelite.
00:01:05
Steel wool pad.
00:01:11
Used to clean the copper film bakelite virgin.
00:01:13
Drill Used to drill holes where the legs or pins
00:01:20
enter the components on the PCB.
00:01:24
Beads This should be of different sizes, depending
00:01:28
on the thickness of the legs of the components.
00:01:31
Frozen Natural resin that when mixed with paint thinner
00:01:36
you get a solution to protect the form from rust.
00:01:40
Procedure The first step is to print the printed circuit
00:01:44
pattern on the Propacol paper or the thermotransferable paper, using a laser printer.
00:01:49
The drawing must be in mirror mode, meaning the opposite of how the form it will be.
00:01:57
If it's not reversed, the form will be the other way around making all this labor futile.
00:02:04
We now proceed to cut the drawing, leaving a tap of about 5mm on each side.
00:02:10
You have a margin of error for the time to move the drawing to the Bakelite.
00:02:16
With a sharp chisel and a steel ruler we take as our guide the drawing of the circuit board
00:02:27
and we cut the Bakelite at this same size.
00:02:33
We sand the Bakelite's edge, deburring the remaining copper leaving after the cutting.
00:03:38
This is done so when we iron the boards don't find any obstacles to a uniform pressure plate,
00:03:44
preventing good adhesion of the paper to the Bakelite.
00:03:50
We wash the Bakelite with soap and water degreaser, then with a steel wool pad we shine the copper
00:03:56
until it is spotless without any fingerprints or grease.
00:04:02
This is very important for good adhesion of the design on the Bakelite.
00:04:11
We place the printed circuit pattern on a sheet of paper.
00:04:30
We put the Bakelite virgin over the drawing facing the drawing with the copper.
00:04:36
and we ensure paper drawing and bakelite with a piece of masking tape.
00:04:42
With the iron on his highest temperature we iron for 15 minutes.
00:04:52
Emphasis should be pushing at the edges and the center.
00:05:00
Form the pressure and uniformity with which this process is done depends the quality of
00:05:09
our printed circuit.
00:05:14
Remove the sheet of paper we use to isolate the drawing board.
00:05:26
Re-soak in cold water the Bakelite with the paper attached.
00:05:35
After 10 minutes, the paper should be damp enough to be able to remove it carefully.
00:05:41
If you notice that the paper cannot be removed easily, dip the card for another 5 minutes.
00:06:03
With your fingertips, remove the paper leaving the ink added to the copper.
00:06:10
Do not use nails, because can raise and spoil the printed ink.
00:06:16
To remove the paper's small gaps between the tracks or holes, may use a needle to soften
00:06:34
the paper.
00:06:39
Be careful not to damage the tracks.
00:06:40
So we have removed all the paper leaving the impression of the drawing on the copper.
00:06:59
In a plastic container, add a small amount of ferric chloride.
00:07:04
We add hot water, be careful, this is corrosive.
00:07:11
We immerse the bakelite.
00:07:14
Gently shake the time necessary to remove the ferric chloride copper in areas not covered
00:07:18
by the ink.
00:07:23
We see the printed circuit appears and disappears the excess copper.
00:07:24
After wash the board with thinner to remove the ink.
00:07:39
Then rise it with soap and degreaser.
00:07:51
If for some reason are colliding tracks, separate copper removing the excess with a knife.
00:08:02
Check the paper against light.
00:08:08
Then drill all the holes where are going to be embedded components.
00:08:11
Use the appropriate drilled bit according to the thickness of the legs of each component.
00:08:16
Clean the card again with a steel wood pad to give a shine and smooth finish.
00:08:39
Besides this, prevent corrosion in case there is any remain trace of ferric chloride.
00:08:45
We dilute the rosin in thinner and apply on the card to brighten and protect it from oxidation.
00:09:09
We have our printed circuit board, we hope this tutorial is very useful.
00:09:29
Success!
00:09:35
